When you hear people refer to cars as “data centers on wheels,” they’re usually thinking about how an individual experiences enhanced digital capabilities in a car, such as streaming media on-demand or new software-defined services for enhancing the driving experience.
But there’s an important implication lurking behind the statement. For cars to take on tasks that require data center-like versatility, they need to be built like data centers. Automakers in conjunction with hardware makers and software developers are going to have to develop a portfolio of highly specialized technologies that work together, based around similar architectural concepts, to deliver the capabilities needed for the software-defined vehicle while at the same time keeping power and cost to a minimum. It’s not an easy balancing act.

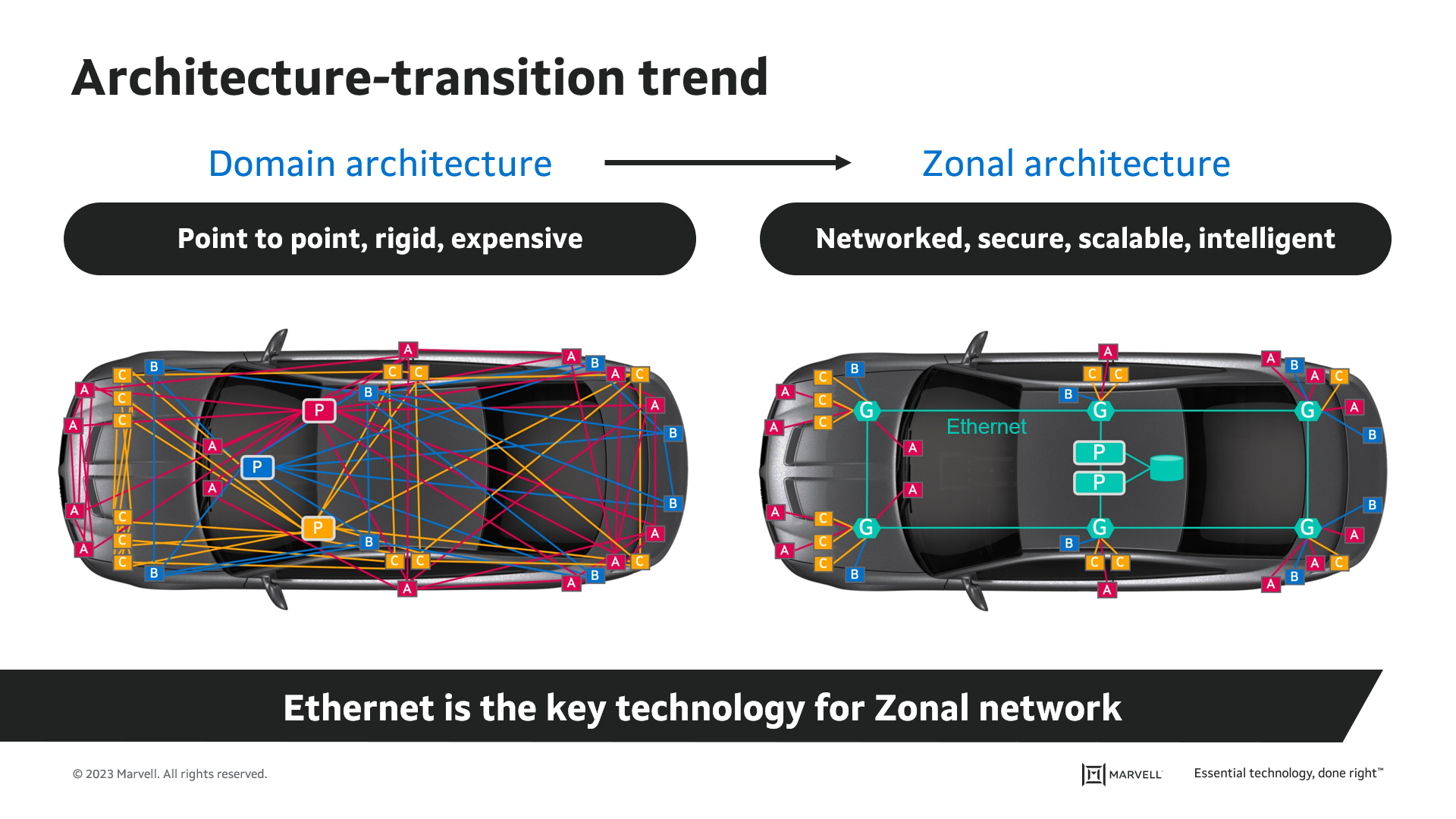

Which brings us to the emergence of a new category of products for the zonal architecture, specifically zonal and the associated automotive central Ethernet switches. Today’s car networks are built around domain localized networks: speakers, video screens and other infotainment devices link to the infotainment ECU, while powertrain and brakes are part of the body domain, and ADAS domain is based on the sensors and high-performance processors. Bandwidth and security can be form-fitted to the application.
Domain architecture, however, has a multitude of problems. First, it makes sharing data between domains more difficult. What if surrounding cameras are on the infotainment network and need to transfer data to the ADAS network? Or if the manufacturer wants to introduce a predictive maintenance service that requires data from the engine to an external 5G link? Unnecessary complexity and degradation in performance is the result.
Domains also mean excess cables, many running the length of the car. Some mid-sized economy cars have 1.5 kilometers of electrical, networking and other cables. They fit within voids and tight spaces and often have to be inserted by hand at the factory. This can add both manufacturing and maintenance costs. Plus, if it’s an EV, extra weight equals lower range.
In the (Auto) Zone

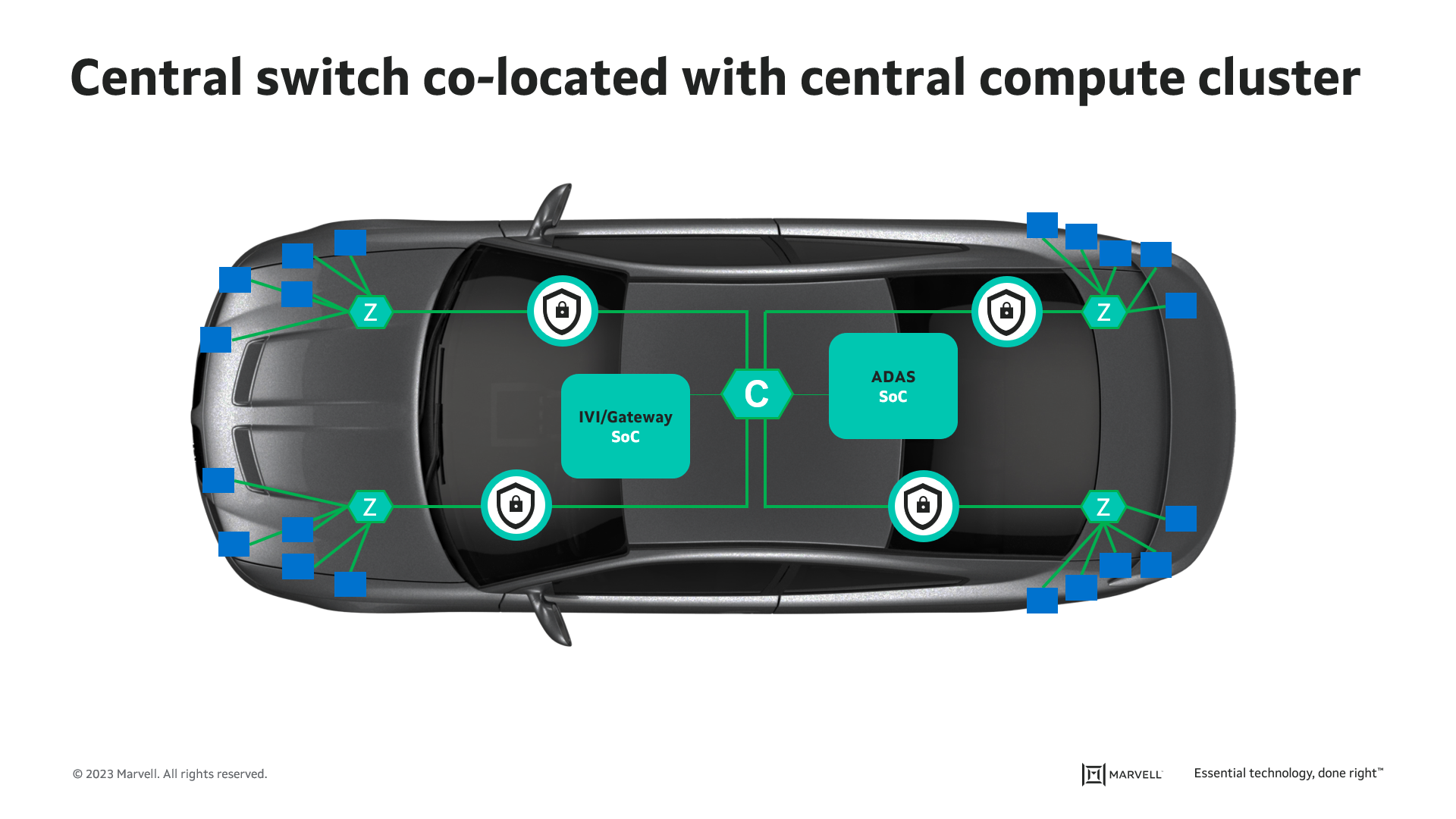

Enter zonal architectures. In zonal architectures, all of the devices in a particular physical zone of a vehicle are linked to a local zonal aggregation switch, using very short cables. These zonal aggregation switches—and there will be four to six zones in cars by the second half of the decade—then link up to central switches that coordinate and organize traffic flow between the zones, central computing and storage, and external services.
Recently, we debuted a new family of central Automotive Ethernet switches. With the industry’s highest capacities at 90 Gbps and 60 Gbps and advanced security features, the new Brightlane™ MV-622x family is tailored to be able to manage traffic across different zones.
If this looks familiar, it should. It’s similar to the architectures in enterprises with zonal switches playing the role of enterprise edge switches and centralized switches serving as aggregation switches. The concept is also catching on. The number of Ethernet ports shipped annually to the automotive industry will likely pass 1 billion in 2025 or 2026, more than double today’s rate and 10x the number shipped in 20181.
The benefits to building cars like data centers are also massive:
All of this, of course, is only possible if a robust network exists in the first place to tie everything together.
Automotive Technology and Darwin’s Finches
But is automotive central Ethernet switching a full-fledged product category? Right now, the main difference is bandwidth capacity and some security features. Over time, though, you’ll see different feature sets that will further distinguish zonal and central switches. Again, look to history: cloud switches are one of the fastest-growing segments in infrastructure networking, but they grew out of enterprise switches. Similarly, today’s AI switches are just cloud switches with a different SKU: over time, they will evolve into distinct species.
Automotive architectures, however, will evolve differently than those for data centers: the “on wheels” part of the equation changes what OEMs will need from digital technology. The real-time performance demand of applications like ADAS might require car makers to balance AI processing between the zones and the central compute cluster instead of shifting it all to a centralized system. On the other hand, single (or dual) centralized compute systems might be more cost effective and we expect the market to evolve in this direction over time. The same goes for storage and security. For storage, the growing capacity will push many OEMs to centralized storage that can serve all domains in the vehicle. For security, the increase of SDV and connected cars means we can expect laws that will demand new security protocols.
We can see where the road is headed, and Marvell is ready to help auto makers bring their wish list to life.
1. Marvell estimates (Ethernet port units, growth) and TechInsights (Automotive Infotainment and Telematics Systems, 2022).
